Variants
However varied bikes are today, the SPEEDHUB fits almost any frame. The base is the SPEEDHUB 500/14 with a 135 mm dropout width and a threaded (TS) or quick-release (CC) axle; the wider, 12 mm thru-axle and fat-bike variants build on it. The logic of the building blocks is explained in Modular system.
Dropout width and axle
Section titled “Dropout width and axle”135 mm is the Classic size and 148 mm Boost; 170 and 177 mm take the XL shell, 190 and 197 mm the XXL.
| Dropout width (mm) | 135 | 142 | 148 | 170 | 177 | 190 | 197 |
|---|---|---|---|---|---|---|---|
| TS — threaded axle with M10×1 nuts | ✓ | ✓ | |||||
| CC — quick-release axle | ✓ | ✓ | ✓ | ||||
| A12 — for 12 mm thru-axle frames | ✓ | ✓ | ✓ | ✓ | |||
| For 36-hole rims | ✓ | ✓ | ✓ | ||||
| Tandem (except PM versions) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Cargo bike (except PM versions) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |

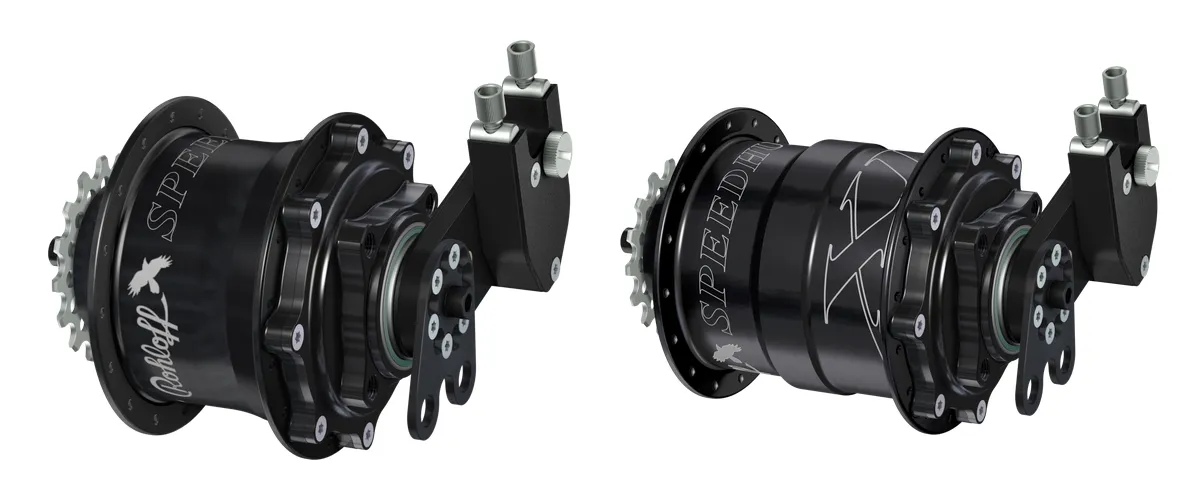

The standard shell is for 135, 142 and 148 mm dropouts, the XL/XXL shell for 170, 177, 190 and 197 mm — so fat bikes can enjoy the SPEEDHUB too.
Colours
Section titled “Colours”

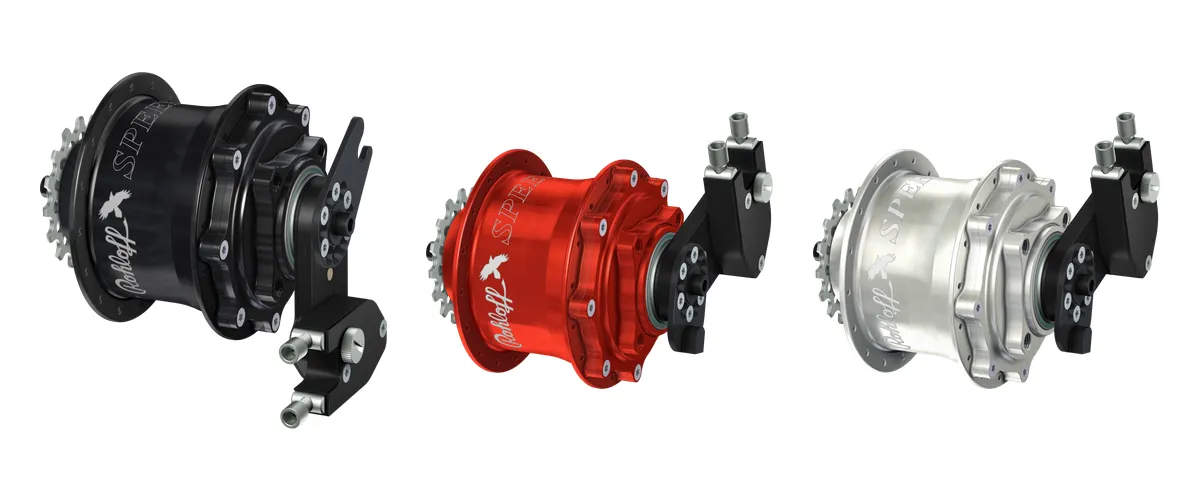

Every type comes in three colours: black, red and silver anodised. The exceptions are XL and XXL, which come in black only.
Electronic shifting
Section titled “Electronic shifting”For e-bikes, the SPEEDHUB also comes with the electronic E-14 shift actuation: Rohloff E-14.
